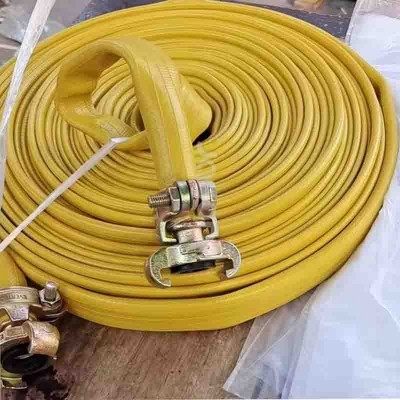

lay flat 3/4'' compressor air hose for pneumatic well rock drill
Layflat air hose is engineered for efficient, long-distance compressed air delivery in demanding job-site environments. Its flat design allows fast deployment, compact storage, and easy transport, reducing downtime and handling effort.
Layflat Air Hose Description
The layflat air hose is a high-performance compressed air delivery hose engineered for demanding industrial and job-site applications. Its collapsible flat profile allows the hose to lay completely flat when depressurized, enabling compact storage, fast deployment, and efficient routing through confined or temporary work areas.
Manufactured with premium nitrile rubber compounds, the hose delivers excellent resistance to abrasion, kinking, and torsional stress. The reinforced construction ensures stable pressure handling while maintaining outstanding flexibility, resulting in consistent airflow and long-term operational reliability. Lightweight yet robust, layflat air hoses provide an efficient solution for mobile air supply systems and heavy-duty pneumatic operations.
Layflat Air Hose Construction
- Tube & Cover: High-quality nitrile rubber, resistant to wear, aging, and environmental exposure
- Reinforcement: High-tenacity synthetic yarn for enhanced pressure stability and durability
| Inch | mm | Working Pressure (Bar) | Working Pressure (Psi) | Burst Pressure (Bar) | Burst Pressure (Psi) | Wall Thickness (mm) | Length |
|---|---|---|---|---|---|---|---|
| 3/4 | 19 | 22.5 | 325 | 90 | 1305 | 2.2 | 30 m (100 ft) or as required |
| 1 | 25 | 22.5 | 325 | 90 | 1305 | 2.2 | 30 m (100 ft) or as required |
| 1 1/2 | 38 | 20 | 290 | 80 | 1160 | 2.5 | 30 m (100 ft) or as required |
| 2 | 51 | 15 | 215 | 60 | 870 | 2.5 | 30 m (100 ft) or as required |
| 2 1/2 | 65 | 15 | 215 | 60 | 870 | 2.8 | 30 m (100 ft) or as required |
| 3 | 76 | 15 | 215 | 60 | 870 | 2.8 | 30 m (100 ft) or as required |
Key Features
- Flat-lay design for easy storage and transport
- Lightweight construction with excellent flexibility
- High pressure capability with stable airflow
- Superior resistance to abrasion, kinking, and twisting
- Long service life in demanding operating conditions
Typical Applications
- Air compressor discharge and distribution lines
- Pneumatic tools and equipment
- Rock drilling and mining support operations
- Automated air supply systems
- Cable blowing installations
- Soil excavation and air-assisted digging
- Air caster rigging systems for heavy load movement
- Hose Brand
- Evergood
- Place of Origin
- China
- Material
- rubber
