Non Conductive Hydraulic Hose

Evergood factory produce quality non conductive hydraulic hose to transport petroleum-based, water-based, and synthetic hydraulic fluids without a risk of conducting electricityAnd they often feature an orange or other non-black cover. And the conductivity should be less than 50 micro-amps leakage to ensure safety.

  • smooth
  • 1/4
  • 5/16
  • 3/8
  • 1/2
  • 1/8

local_shipping Fast shipping, Evergood hose supports wholesale and OEM orders. 25-35 days for timely delivery. Contact us soon to get latest price.

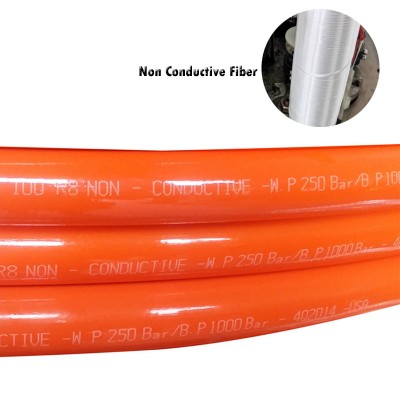

Non Conductive Hydraulic Hose

Inner tube: non conductive Nylon

Hose Reinforcement Material: Fiber

Cover Material: Polyurethane

Application:Aerial Lift, Hydraulics, Mobile Equipment

Specifications: SAE J517 electrical standards (non-conductivity), SAE J517 100R7, DNV-GL Type Approved, ANSI A92.2, ISO 3949-R7-2

The temperature range : -40˚ F to +212˚ F (-40 °C to 100 °C).

Non Conductive Hydraulic Hose Quality

Evergood non conductive hose is specifically built and tested to ensure the proper electrical properties. For example, the SAE J517 standard for 100R7 and 100R8 hoses states that permissible conductivity should be less than 50 micro-amps leakage under 75,000 volts per foot of length.

Thus, nonconductive hydraulic hoses are recommended for use in mobile-lift equipment,hydraulic aerial-lift platforms, and agricultural and construction machinery. Nonconductive hoses are also routinely used in steel mills, foundries, mines and shipyards, and in rescue tools.

quality non conductive hydraulic hose

non conductive hose
Product Name
Hydraulic Hose
Place of Origin
Outer Tube
Inner Tube
