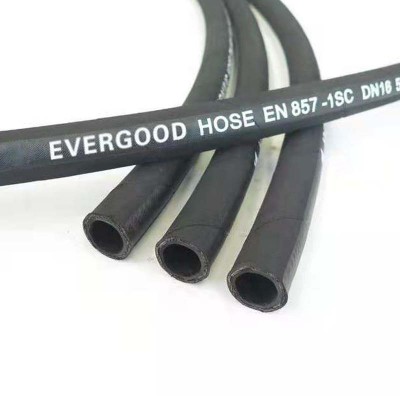

Wire Braid Hydraulic hose DIN EN 857 1SC

Compact single wire braid EN 857 1SC hydraulic hose structure. Good flexibility, highly anti-abrastion, anti-corrosion, longer service life. Superior quality, Factory price is your best choice.

  • wrap
  • braided
  • 1/4
  • 3/8
  • 1/2
  • 1

local_shipping Fast shipping, Evergood hose supports wholesale and OEM orders. 25-35 days for timely delivery. Contact us soon to get latest price.

Wire Braid Hydraulic Hose DIN EN 857 1SC Constructure

Hydraulic Tube: fine Oil resistant synthetic rubber, extruded whole without joints, of uniform thickness

Reinforcement: One high tensile steel braid Steel Wire

Cover:Black, synthetic rubber covered by a polyethylene film, with high abrasion, oils and environment resistance

Temp. range: -40°C +100°C

Hose Type
I.D.
O.D.
Working Pressure
Burst Pressure
B.R
Dash
Inch
mm
mm
MPa
PSI
MPa
PSI
mm
1SC-04
1/4"
6.4
13.5
22.5
3263
90
13050
75
1SC-05
5/16"
7.9
14.5
21.5
3118
85
12325
85
1SC-06
3/8"
9.5
16.9
18.0
2610
72
10440
90
1SC-08
1/2"
12.7
20.4
16.0
2320
64
9280
130
1SC-10
5/8"
15.9
13.0
13.0
1885
52
7540
150
1SC-12
3/4"
19.1
26.7
10.5
1523
42
6090
180
1SC-16
1"
25.4
34.9
8.7
1262
35.2
5075
230

Wire Braid Hydraulic Hose DIN EN 857 1SC Application

Wire braided reinforced hydraulic hoses 1SC for low-medium pressure lines with installation constraints and pilot lines in extreme abrasion conditions.

Wire Braid Hydraulic Hose DIN EN 857 1SC Quality

  1. Exceed EN 857 1SC Standard
  2. 3 Times Working Pressure Test
  3. Impulse test
  4. Compact 1SC hose constructure
  5. Soft in Flexbility
  6. Fine were-resistance
  7. Anti-aging
  8. Uniform wall thickness
  9. Longer service life
  10. Anti-corrosion
  11. CE, ISO, SGS, etc, quality guaranteed

half inch hydraulic pipe price

quarter inch mobile hydraulic hose en 857 1sc

Wire Braid Hydraulic Hose DIN EN 857 1SC Packing

  • Colorful nylon tape wrapped coils
  • Transparent PVC sea worthy tape wrapped coils
  • Plastic hose reels
  • Wooden hose reels
  • Pallets with hose coils
  • Wooden case with hose coils

half inch high pressure hydraulic hose packing

Wire Braid Hydraulic Hose DIN EN 857 1SC Delivery Time

  • Less than 1000 Meters will delivery within 7days;
  • Less than 10000 Meters will delivery within 15 days.
  • 1-2 full containers will be delivery within 35 days.

Wire Braid Hydraulic Hose DIN EN 857 1SC FAQ

Q: Do you provide en 857 1sc hydraulic hose samples ? is it free or extra ?

A: Yes, we could offer the sample for free but do not pay the cost of shipping.

Q: What is your terms of payment ?

A: Amount<=1000USD, 100% in advance. Amount>=1000USD, 30% T/T in advance, balance should be paid before shipment.

If you have special request, pls freely contact us!
